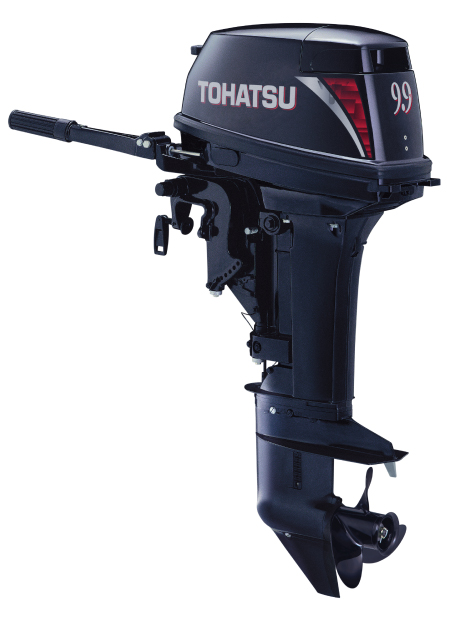

M9.9

Mã sản phẩm : 1512142604

Tohatsu gives boaters exactly what they need in mid-range portables: more power and less weight! All of these truly portable models offer an incredible horsepower-to-weight ratio. Whatever your boating application, these are the ultimate outboards for convenience, reliability and portability.

Giới thiệu
Bình luận

Overview
Tohatsu 2-stroke benefits
Excellent reliability with proven 2-stroke technology
Simple in design

Easy operation and handling
Loop charged induction for smooth operation and fuel economy
CD ignition system for quicker starts

Fundamentals for user convenience and reliability
Through-the-prop exhaust for a quiet ride
Thermostatically controlled cooling system for consistent engine temperature
Stainless steel water pump housing for outstanding durability
High grade marine aluminum alloy that provides the ultimate protection against corrosion
Zinc coating on internal water passages for superior corrosion resistance
Aluminum propeller

Protection
Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
Start-in-gear protection for safer engine starting

Specifications
Model / M9.9

Type

Two Stroke
Maximum output
HP (kw)
9.9 (7.3)
Maximum operating range
rpm
4500-5300
Fuel consumption at W.O.T
L/Hr (gal/Hr)
5.5 (1.45)
Number of cylinder

2
Bore x Stroke
mm (in)
55 x 52 (2.17 x 2.05)
Displacement
cc (Cu in)
247 (15.07)
Engine lubrication system

Premixed Fuel
Starting system

Manual or Electric starter
Spark plug

NGK B7HS-10 or BR7HS-10
Ignition timing
degree
ATDC3゜- BTDC25゜
Alternator output

12V 80W 7A
Engine oil

Genuine recommended 2stroke engine oil (TCW-3)
Volume of engine oil tank
L (gal)
-
Fuel tank capacity
L (gal)
25 (6.6)
Speed control

Twist grip type or Remote control
Gear reduction ratio

1.82 (13:24)
Specifications and descriptions are subject to change without notice.

Standard & Optional Equipments
Type
S / L
Electric Starter
-
Manual Starter
●
Engine Stop Switch Lanyard
●
Alternator
●
Rectifier
○
Oil Pre-Mixing
●
Transom
15 / 20
Propeller
●
Analog Tachometer
○
Analog Trim Meter
-
Rmote Control Box
-
25L Plastic Fuel Tank
●
Tool Kit
●
Emergency Starter Rope
●
Spare Spark Plugs
●
Owners Manual
●
● Standard　　○ Optional
