Specifications

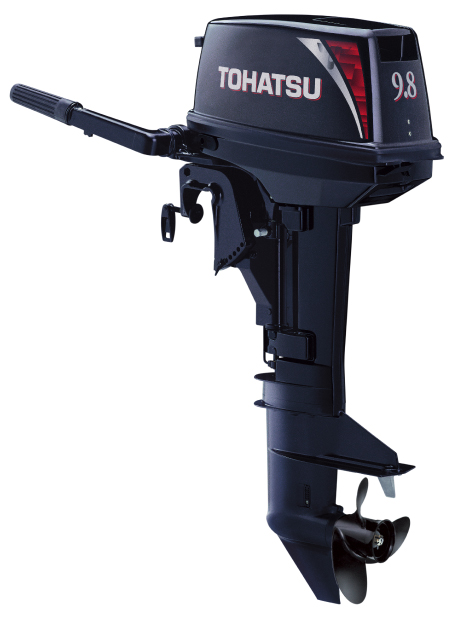

Model / M9.8
Type
Two Stroke
Maximum output
HP (kw)
9.8 (7.2)
Maximum operating range
rpm
5000-6000
Fuel consumption at W.O.T
L/Hr (gal/Hr)
5.1 (1.35)
Number of cylinder
2
Bore x Stroke
mm (in)
50 x 43 (1.97 x 1.69)
Displacement
cc (Cu in)
169 (10.31)
Engine lubrication system
Premixed Fuel
Starting system
Manual or Electric starter
Spark plug
NGK BP7HS-10 or BPR7HS-10
Ignition timing
degree
ATDC2.5゜- BTDC26゜
Alternator output
Cartain Model : 12V 80W 7A
Engine oil
Genuine recommended 2stroke engine oil (TCW-3)
Volume of engine oil tank
L (gal)
-
Fuel tank capacity
L (gal)
12 (3.17)
Speed control
Twist grip type or Remote control
Gear reduction ratio
2.08 (13:27)
Specifications and descriptions are subject to change without notice.
Standard & Optional Equipments
Type
S / L / UL
EFS / L
Electric Starter
-
●
Manual Starter
●
●
Engine Stop Switch Lanyard
●
●
Alternator
○
●
Rectifier
○
●
Oil Pre-Mixing
●
●
Transom
15 / 20 / 25
15 / 20
Propeller
●
●
Analog Tachometer
○
○
Analog Trim Meter
-
-
Rmote Control Box
-
-
12L Plastic Fuel Tank
●
●
Tool Kit
●
●
Emergency Starter Rope
●
●
Spare Spark Plugs
●
●
Owners Manual
●
●
● Standard ○ Optional
