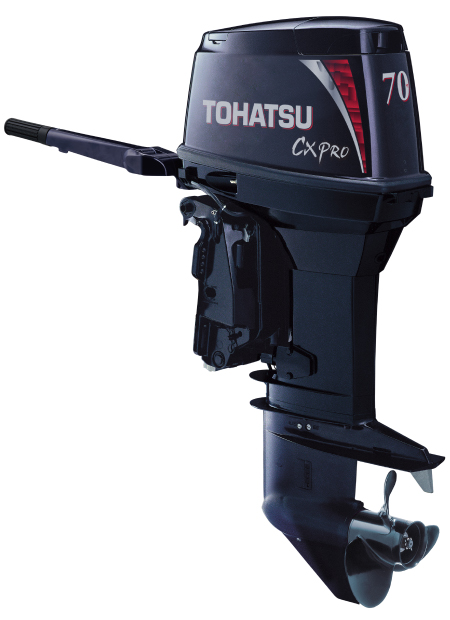

M70CX

Mã sản phẩm : 1512140400

Globally well reputed Tohatsu 2 Stroke 70HP has been upgraded for its further possibilities. These models are the best choise for the commercial fisherman and of course for the pleasure boaters as well. Experience the brilliantly modified CXPRO Model.

Giới thiệu
Bình luận

Overview
Tohatsu 2-stroke CXPRO benefits
Excellent reliability with proven 2-stroke technology
Simple in design
More Durability
New Top Cowl graphic

Easy operation and handling
Loop charged induction for smooth operation and fuel economy
CD ignition system for quicker starts
Easy maintenance access
Easy shift operation
Smoother acceleration
Gas Assist Tilt

Fundamentals for user convenience and reliability
Through-the-prop exhaust for a quiet ride
Thermostatically controlled cooling system for consistent engine temperature
Chrome plated stainless steel water pump housing for outstanding durability
High grade marine aluminum alloy that provides the ultimate protection against corrosion
Zinc coating on internal water passages for superior corrosion resistance
Aluminum propeller
Adopted;
- Low compression ratio cylinder head,
- Half Key-Stone Top Piston Ring to increase durability

Warning and protection
Electronic Safety Governor limits engine rpm to protect the outboard against over-reving
Overheat warning
Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
Start-in-gear protection for safer engine starting

Specifications
Model / M70CX

Type

Two Stroke
Maximum output
HP (kw)
70 (51.5)
Maximum operating range
rpm
5150-5850
Fuel consumption at W.O.T
L/Hr (gal/Hr)
28 (7.4)
Number of cylinder

3
Bore x Stroke
mm (in)
74 x 72.7 (2.91 x 2.86)
Displacement
cc (Cu in)
938 (57.23)
Engine lubrication system

Premixed Fuel
Starting system

Manual starter
Spark plug

NGK B8HS-10 or BR8HS-10
Ignition timing
degree
ATDC3゜- BTDC15゜
Alternator output

12V 130W 11A
Engine oil

Genuine recommended 2stroke engine oil (TCW-3)
Volume of engine oil tank
L (gal)
-
Fuel tank capacity
L (gal)
25 (6.6)
Speed control

Twist grip type
Gear reduction ratio

2.33 (12:28)
Specifications and descriptions are subject to change without notice.

Standard & Optional Equipments
Type
MFGL / UL
Electric Starter
-
Manual Recoil Starter
●
Engine Stop Switch Lanyard
●
Alternator
●
Rectifier
○
Power Trim & Tilt
-
Gass Assist Tilt
●
Oil Auto Mixing
-
Transom
20 / 25
Chrome Plated Water Pump Housing
●
Propeller
●
Analog Tachometer
○
Analog Trim Meter
-
Rmote Control Box
-
25L Plastic fuel Tank
●
Tool Kit
●
Emergency Starter Rope
●
spare Spark Plugs
●
Owners Manual
●
● Standard　　○ Optional　　* Equip with the remote control box
