M5

Mã sản phẩm : 1512143690

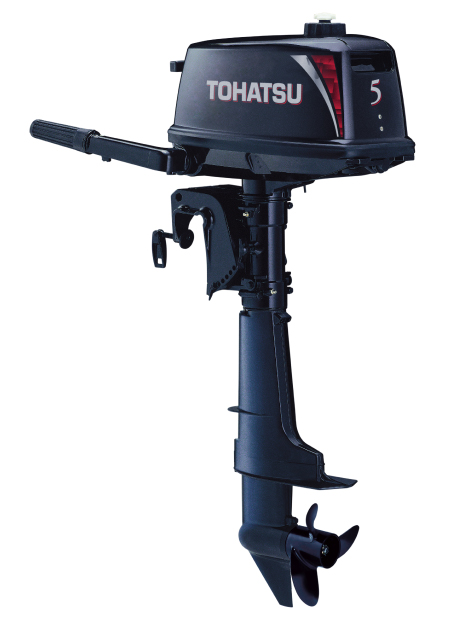

Tohatsu gives boaters exactly what they need: more power and less weight! All of these truly portable models offer an incredible horsepower-to-weight ratio. These are the ultimate outboards for convenience and portability. The 5 weights only 20 kgs! Wherever you're going, there's a little Tohatsu to take with you!

Giới thiệu
Bình luận

Overview
Tohatsu 2-stroke benefits
Excellent reliability with proven 2-stroke technology
Simple in design

Easy operation and handling
Loop charged induction for smooth operation and fuel economy
CD ignition system for quicker starts
Carrying handle

Fundamentals for user convenience and reliability
High grade marine aluminum alloy that provides the ultimate protection against corrosion
Zinc coating on internal water passages for superior corrosion resistance
Shifting: Forward (F) - Neutral (N) - Reverse (R)
Aluminum propeller
Built-in fuel tank 2.5 liter
Separate fuel tank 12 liter

Protection
Safety lanyard (an essential protection feature standard on all Tohatsu outboards)

Specifications
Model / M5

Type

Two Stroke
Maximum output
HP (kw)
5 (3.7)
Maximum operating range
r/min
4500-5500
Fuel consumption at W.O.T
L/Hr (Gal/Hr)
2.5 (0.66)
Number of cylinder

1
Bore x Stroke
mm (in)
55 x 43 (2.17 x 1.69)
Displacement
ml (Cu in)
102 (6.22)
Engine lubrication system

Premixed Fuel
Starting system

Manual
Spark plug

NGK BP7HS-10 or BPR7HS-10
Ignition timing
degree
BTDC5゜- BTDC30゜
Alternator output

(Option : 12V 60W 5A)
Engine oil

Genuine recommended 2stroke engine oil (TCW-3)
Volume of engine oil tank
L (Gal)
-
Fuel tank capacity
L (Gal)
12 (3.17) and 2.5(0.66)
Speed control

Twist grip type
Gear reduction ratio

2.15 (13:28)
Specifications and descriptions are subject to change without notice.

Standard & Optional Equipments
Type
S / L
Manual Starter
●
Engine Stop Switch Lanyard
●
Alternator
○
Rectifier
○
Oil Pre-Mixing
●
Transom
15 / 20
Propeller
●
Analog Tachometer
-
Analog Trim Meter
-
Rmote Control Box
-
12L Plastic Fuel Tank
●
2.5L In-tank
●
Tool Kit
●
Emergency Starter Rope
●
Spare Spark Plug
●
Owner's Manual
●
● Standard　　○ Optional
