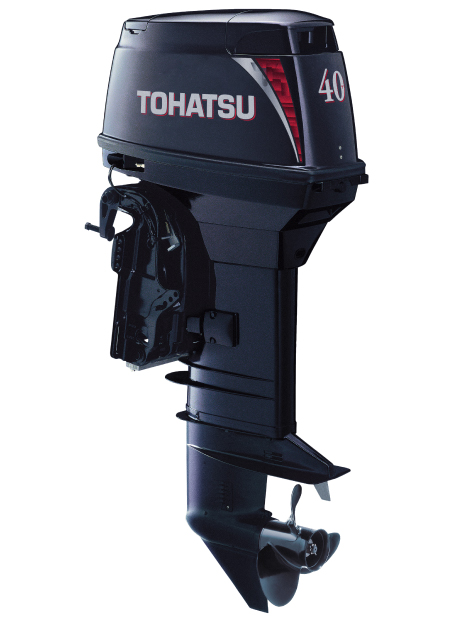

M40

Mã sản phẩm : 1512140680

Tohatsu 2-strokes are world famous for their reliability, terrific-horsepower-to-weight ratios and top-of-the-line performances! This in-line 3-cylinder outboard provide all of the extra features you want and need without compromising Tohatsu's well-known quality. The M40 will give you performance and reliability for your long days of boating pleasure.

Giới thiệu
Bình luận

Overview
Tohatsu 2-stroke benefits
Excellent reliability with proven 2-stroke technology
Simple in design
Fuel & oil automixing for optimum lubrication*

Easy operation and handling
Loop charged induction for smooth operation and fuel economy
CD ignition system for quicker starts
Power Trim & Tilt*
Remote control**
Oil reservoir located on the top of the motor for quick and easy refills*

Fundamentals for user convenience and reliability
Through-the-prop exhaust for a quiet ride
Thermostatically controlled cooling system for consistent engine temperature
Stainless steel water pump housing for outstanding durability
High grade marine aluminum alloy that provides the ultimate protection against corrosion
Zinc coating on internal water passages for superior corrosion resistance
Tachometer and trim meter*
Aluminum propeller

Warning and protection
Electronic Safety Governor limits engine rpm to protect the outboard against over-reving
Overheat warning (audible)
Water pressure sensor
Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
Start-in-gear protection for safer engine starting

Specifications
Model / M40

Type

Two Stroke
Maximum output
HP (kw)
40 (29.4)
Maximum operating range
rpm
5000-5700
Fuel consumption at W.O.T
L/Hr (gal/Hr)
17 (4.49)
Number of cylinder

3
Bore x Stroke
mm (in)
68 x 64 (2.68 x 2.52)
Displacement
cc (Cu in)
697 (42.53)
Engine lubrication system

Premixed Fuel or Auto Mixing
Starting system

Manual or Electric starter
Spark plug

NGK B7HS-10 or BR7HS-10
Ignition timing
degree
ATDC3゜- BTDC18゜
Alternator output

12V 130W 11A
Engine oil

Genuine recommended 2stroke engine oil (TCW-3)
Volume of engine oil tank
L (gal)
Certain model:2 (0.53)
Fuel tank capacity
L (gal)
25 (6.6)
Speed control

Twist grip type or Remote control
Gear reduction ratio

1.85 (13:24)
Specifications and descriptions are subject to change without notice.

Standard & Optional Equipments
Type
S/L/LL
EPOS
EFTOL
EPTOS / L
Electric Starter
-
●
●
●
Manual Starter
●
-
●
-
Engine Stop Switch Lanyard
●
●*
●
●*
Alternator
●
●
●
●
Rectifier
○
●
●
●
Power Trim & Tilt
-
-
●
●
Gas Assist Tilt
-
-
-
-
Oil Auto Mixing
-
●
●
●
Oil Pre-Mixing
●
-
-
-
Transom
15/20/22.5
15
20
15 / 20
Propeller
●
●
●
●
Analog Tachometer
○
●
○
●
Analog Trim Meter
-
-
-
●
Remote Control Box
-
●
-
●
25L Plastic Fuel Tank
●
●
●
●
Tool Kit
●
●
●
●
Emergency Starter Rope
●
●
●
●
Spare Spark Plugs
●
●
●
●
Ownersb Manual
●
●
●
●
● Standard　　○ Optional 　　 * Equip with the remote control box
