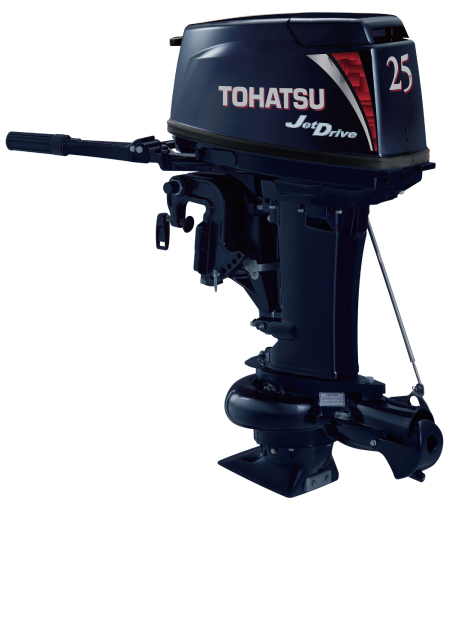

M25JET

Mã sản phẩm : 1512141631

Tohatsu 30 and 25 2-strokes have a well-earned reputation for incredible power and unprecedented reliability, all at manageable weights. Because of these factors, these three models are among the top choices of commercial fishermen all over the world - and pleasure boaters as well.

0906943867
Số lượng:

    Overview
    Tohatsu 2-stroke benefits
    Excellent reliability with proven 2-stroke technology
    Simple in design

    Easy operation and handling
    Loop charged induction for smooth operation and fuel economy
    CD ignition system for quicker starts
    Fundamentals for user convenience and reliability
    Through-the-prop exhaust for a quiet ride
    Thermostatically controlled cooling system for consistent engine temperature
    Stainless steel water pump housing for outstanding durability
    High grade marine aluminum alloy that provides the ultimate protection against corrosion
    Zinc coating on internal water passages for superior corrosion resistance
    Aluminum propeller
    Protection
    Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
    Start-in-gear protection for safer engine starting
    Specifications
    Model / M25Jet
    Type
    Two Stroke
    Maximum output
    HP (kw)
    Jet Power L:25 (18.4) HP L:30(22.1)
    Maximum operating range
    rpm
    5200-5600
    Fuel consumption at W.O.T
    L/Hr (gal/Hr)
    13
    Number of cylinder
    2
    Bore x Stroke
    mm (in)
    68 x 59 (2.68 x 2.36)
    Displacement
    cc (Cu in)
    429 (26.16)
    Engine lubrication system
    Premixed Fuel
    Starting system
    Manual (Option: Electric starter)
    Spark plug
    NGK B7HS-10
    Ignition timing
    degree
    ATDC4゜- BTDC25゜
    Alternator output
    12V 80W 7A
    Engine oil
    Genuine recommended 2stroke engine oil (TCW-3)
    Volume of engine oil tank
    L (gal)
    -
    Fuel tank capacity
    L (gal)
    25 (6.6)
    Speed control
    Twist grip type or Remote control
    Gear reduction ratio
    1
    Specifications and descriptions are subject to change without notice.
    Standard & Optional Equipments
    Type
    JET DRIVE (Two-Stroke)
    Electric Starter

    Manual Starter

    Engine Stop Switch Lanyard

    Alternator

    Rectifier

    Oil Pre-Mixing

    Transom
    20
    Propeller
    -
    Analog Tachometer

    Analog Trim Meter
    -
    Rmote Control Box
    -
    25L Plastic Fuel Tank

    Tool Kit

    Emergency Starter Rope

    Spare Spark Plugs

    Owners Manual

    ● Standard   ○ Optional
